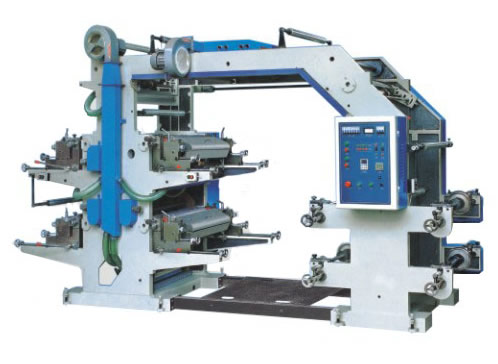

Four-color Flexographic Printing Machine (can be printed woven)
Uses
This machine is used as a photosensitive resin soft version printing plates, commonly known as "aniline printing press." Suitable for printing non-woven fabrics, polyethylene, polypropylene and other plastic bags, cellophane, Web and other packaging materials, paper packaging for food, supermarket handbag, vest bag, garment bags and other packaging ideal printing equipment.
Performance and features:
1, easy operation, flexible starting, accurate color register.
2, meter counter can set printing quantity according to the requirements, the number of automatic shutdown, automatic stop-off material.
3, pneumatic landing plate cylinder, automatic mixing ink after lifting.
4, knurled cylinder with even ink color.
5, Reliable drying system coordinated with high-speed operation, automatic shutdown circuit.
6,360 ° continuous and adjustable longitudinal register device.
7, frequency control, adapt to different printing speeds.
8, plate roller base and shelves are inching stop button, easy operate the machine when installed version.
The main technical parameters: Model YT-4600 YT-4800 YT-41000
The maximum print width of 600mm 800mm 1000mm material
The maximum print width of 560mm 760mm 960mm
Print length 191-914mm 191 ~ 914mm 191 ~ 914mm
Maximum roll diameter ф450mm ф450mm ф450mm
Printing speed 5 ~ 50m / min 5 ~ 50m / min 5 ~ 50m / min
Plate thickness (including double-sided plastic bags) 2.38mm 2.38mm 2.38mm
Total power 10.87Kw 12.5 Kw 14.37Kw
Machine weight 3000kg 3500 kg 4000 kg
Dimensions 4200 × 1600 × 2400mm 4200 × 1600 × 2400mm 4200 × 1600 × 2400mm
|
