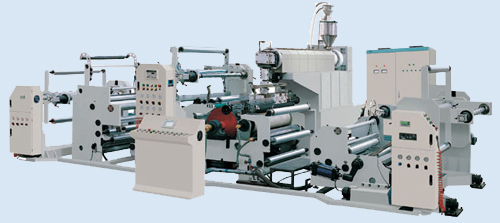

SJFM800-1800-speed extrusion lamination composite unit
Main features:
This series of products in paper, plastic film, woven cloth or aluminum foil as the substrate, through a complex drooling into two, three or more layers of new materials, chemical products as cement, animal feed, chemical products used for cement, feed, food , medicine, cloth tape, plastic cups, fast-food and other packaging supplies.
Applications: paper-plastic composite · · plastic sheet plastic composite plastic composite · · sticker series
Production forms: single-layer film compound · Layer (sandwich) complex · multilayer composite (one-time seven composite)
The main technical parameters:
Project / Model SJFM-800 SJFM-1100 SJFM-1300 SJFM-1600 SJFM-1800
Lip length 900mm 1200mm 1400mm 1800mm 2000mm
Products width 400-700mm 500-1000mm 600-1250mm 800-1500mm 900-1700mm
Maximum composite speed 80-110m / min 80-110m / min 80-110m / min 60-110m / min 60-110m / min
Laminating thickness 0.01-0.03mm 0.01-0.03mm 0.01-0.03mm 0.01-0.03mm 0.01-0.03mm
Screw diameter aspect ratio of 32: 132: 132: 132: 132: 1
Retractable roll maximum diameter ratio ?1200mm ?1200mm ?1200mm ?1200mm ?1200mm
Dimensions 12000 × 6000 ×
3200mm 12500 × 7000 ×
3200mm 1300 × 8000 ×
3200mm 12000 × 9000 ×
3200mm 13000 × 12000 ×
3200mm
Installed power 60kw 70kw 80kw 100kw 130kw
Composite / Mirror cold stick ?510mm ?510mm ?510mm ?510mm ?510mm
For substrate foil paper
|
