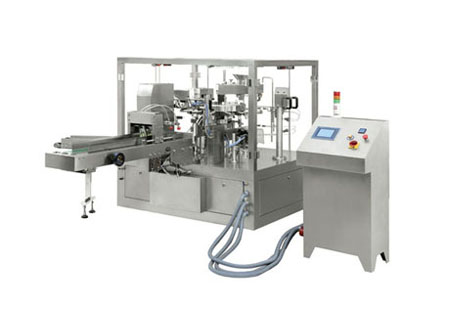

eight-station to the bag packing machine
Eight-station to the bag packing machine Function and characteristics:
1. Full-automatic bag-given packaging machine instead of handwork package, carry out automation of packing for large and small scale enterprise. This type machine improves the production efficiency and lowered cost for every work of life.
2. Change the specification of the wrapping bag rapidly, the automatic given bag device is width can easy adjust by adjustment automatic.
3. Accord with the sanitary standard of the food processing machinery, the spare parts on the machine which touch the product or packing bag adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food.
4. The packing materials loss low, what this machine is used is to prefabricate wrapping bag, the wrapping bag pattern is perfect, it is of high quality to seal, this improved the product specification.
5. Easy to operate, adopt advanced PLC to add POD (the touch-sensitive screen) electric control system, the man-machine interface is friendly. -Various integration with other reador equipments.
bag packing machine
|
Model |
8-250 |
|
Working position of machinery |
Eight-working Station |
|
Function |
Giving bag、Coding 、Opening、Fill consolidate1、Fill consolidate2、Heat sealing1 、Heat sealing2、Forming and output product |
|
Packaging material |
Portable bag、Hand luggage、Zipper bag、Edging bag 4 sides、
Edging bag 3 sides、Paper bag |
|
Size of bag |
W:100~250mm L:100~300mm |
|
Weight |
1200kg |
|
Scaling scope |
5-1500g |
|
Speed |
25-45bags/min (The speed depends on the product status and filling weight) |
|
Total power |
2.1Kw |
|
Dimension |
1140x1500x1560mm |
|
Compress air requirement |
0.4m3/min supply by user |
|
